About Gear
Gear : Transmit motion & power between rotating shafts
Supreme Engineers is pleased to introduce range of Gears which are essential
components in various machines and mechanisms, playing a crucial role in power
transmission, speed reduction or increase, and changing the direction of motion,
transmission applications.
There are many types of gears such as spur gears, helical gears, bevel gears, worm
gears, gear rack, etc. These can be broadly classified by looking at the positions
of axes such as parallel shafts, intersecting shafts and non-intersecting shafts.
Gears are machine components that function to transmit rotation or movement from one
part to another. Gears will usually have a number of teeth that are in contact with
their other gears. Gears are useful for changing rotational speed and power by
transferring the power generated by the engine to the differential.
Application
Automotive, Textile, Aerospace, Printing,
Medical, Robotics, Custom Equipment, Bicycles, Construction Equipment, Mining
Equipment, Marine Applications, Power Generation, etc.
Power Transmission
Our Mechanical gears efficiently transfer power from one rotating shaft to another,
enabling the transmission of motion and torque in various machines and systems.
Versatility in Design
With various types such as spur gears, helical gears, and bevel gears, mechanical
gears offer design flexibility to suit diverse applications and requirements.
Reliability and Durability
Our Well-designed and maintained mechanical gears are known for their reliability
and durability, providing consistent performance even under high loads and demanding
conditions.
Precision and Accuracy
Our Gears ensure precise motion and timing, making them suitable for applications
where accuracy in rotational movement is critical, such as in clocks and precision
machinery.
Advantages
Gears are crucial mechanical components used in a variety of applications, from
machinery to vehicles. Here are some of the key advantages of using gears:
1. Speed and Torque Adjustment : Gears can change the speed and
torque of a rotating shaft. By adjusting the gear ratio, you can increase torque
while reducing speed, or vice versa, making them essential for applications
requiring precise control of movement.
2. Power Transmission : Gears enable efficient transfer of power
between shafts that are not aligned. This makes them indispensable in machines where
power needs to be transmitted from one part to another, such as in automobiles and
industrial machinery.
3. Directional Control : Gears can change the direction of
rotational movement. For example, bevel gears are used to transfer motion between
shafts that are at right angles to each other.
4. Increased Efficiency : Gear mechanisms can be designed to
minimize energy losses through friction, making power transmission more efficient.
This is especially important in high-performance engines and machinery.
5. Reliability and Durability : Well-designed and properly
maintained gears offer high reliability and durability. They can handle substantial
loads and stresses, providing consistent performance over time.
6. Compact Design : Gears allow for compact design in machinery by
changing rotational speed and direction without requiring large, bulky components.
This is particularly useful in applications with space constraints.
7. Precision : Gears can be manufactured to very precise
tolerances, allowing for accurate control of rotational movement. This precision is
crucial in applications like clocks, measuring instruments, and robotics.
8. Versatility : Gears come in various types (such as spur,
helical, bevel, and worm gears) and sizes, making them versatile components that can
be adapted to a wide range of mechanical systems and requirements.
9. Cost-Effectiveness : In many cases, gears provide a
cost-effective solution for power transmission and speed control compared to other
mechanisms. Their long lifespan and low maintenance requirements can contribute to
overall cost savings.
10. Load Distribution : Gears can distribute loads evenly across
multiple teeth, reducing the wear on individual components and increasing the
overall lifespan of the gear system.These advantages make gears integral to
countless mechanical systems, enhancing functionality, efficiency, and performance
in various applications.
Specification
Gears are mechanical components used to transmit motion and
torque between machine parts. They come in various types and specifications
depending on the application. Here's a general overview of key specifications
and types of gears:
1. Gear Types

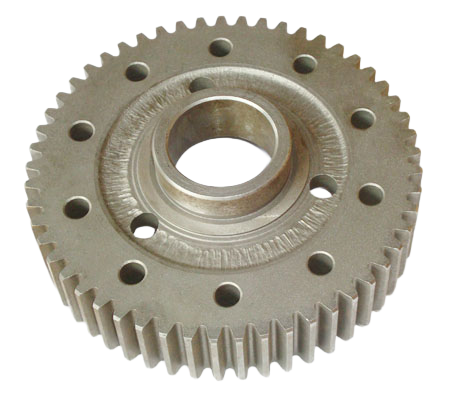

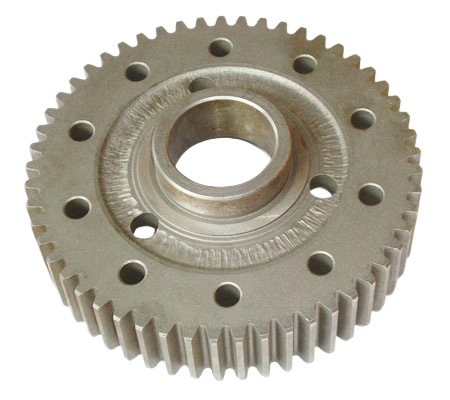

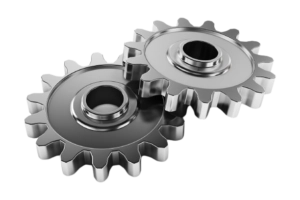

Spur Gears : Have straight teeth parallel
to the axis. Commonly used for simple, straight-line motion.

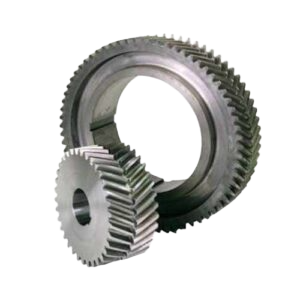

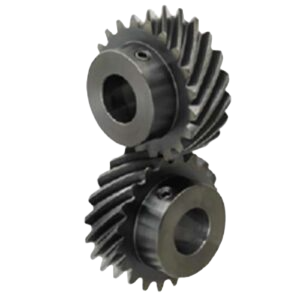

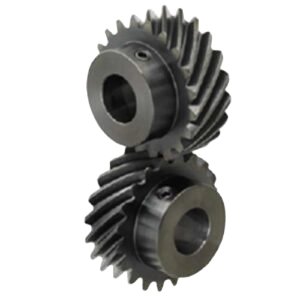

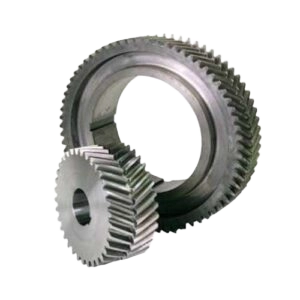

Helical Gears : Teeth are cut at an angle
to the gear's axis, providing smoother and quieter operation compared to spur gears.

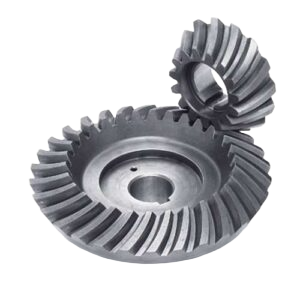

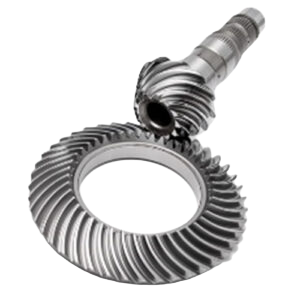

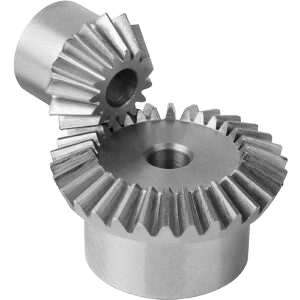

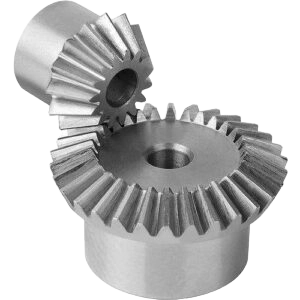

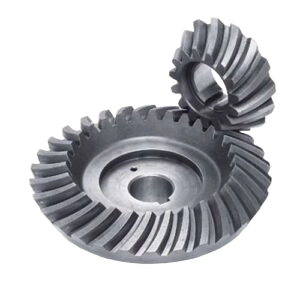

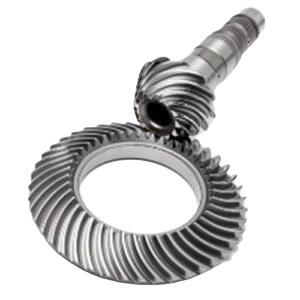

Bevel Gears : Used to change the
direction of shaft rotation, typically at a 90-degree angle.

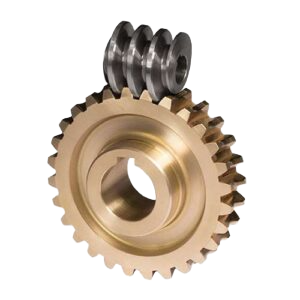

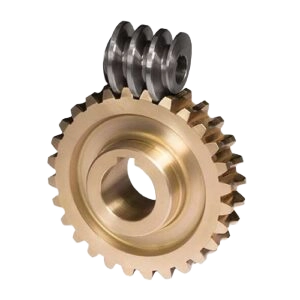

Worm Gears : Consist of a worm (screw)
and a worm wheel. Useful for high torque applications and providing significant
speed reduction.
Rack and Pinion : Converts rotational
motion into linear motion. Common in steering mechanisms.
2. Key Specifications
Module (m) : In metric systems, the
module is the ratio of the pitch diameter to the number of teeth. It's a measure of
gear size.
Diametral Pitch (DP) : In imperial
systems, it's the number of teeth per inch of gear diameter.
Pitch Diameter (D) : The diameter of the
pitch circle, where the teeth effectively engage.
Number of Teeth (N) : The count of teeth
on the gear.
Pressure Angle (a) : The angle between
the line of action and the line perpendicular to the pitch circle. Common values are
20° or 14.5°.
Gear Ratio (i) : The ratio of the number
of teeth on two meshing gears, which determines the mechanical advantage and speed
reduction.
Face Width (b) : The width of the gear
tooth parallel to the axis.
Backlash : The clearance between meshing
gears, which allows for smooth operation but affects accuracy.
Helix Angle : The angle at which the
teeth are cut relative to the gear axis, significant for helical gears.
Tooth Profile : The shape of the gear
tooth, which affects how gears mesh and transfer force. Common profiles include
involute and cycloidal.
3. Material and Hardness
Material : Gears are made from various
materials including steel, brass, plastic, and composites. Material choice depends
on the application, load requirements, and environmental factors.
Hardness : Hardness treatments like
carburizing or induction hardening may be applied to increase wear resistance and
extend gear life.
