Transmit motion and power between rotating shafts

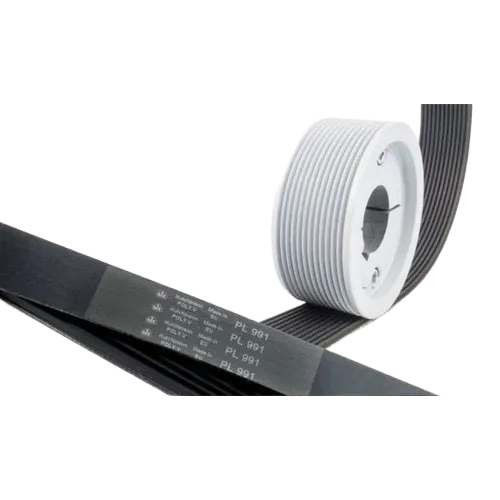

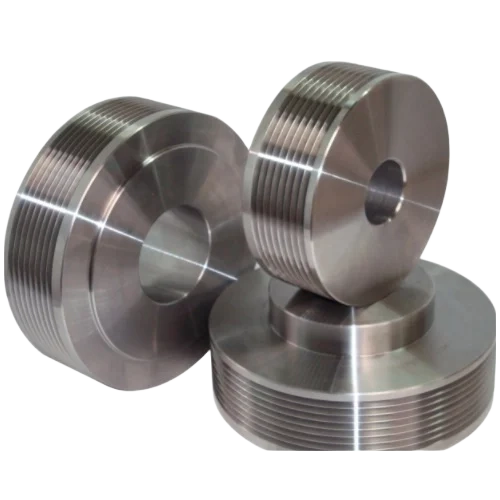

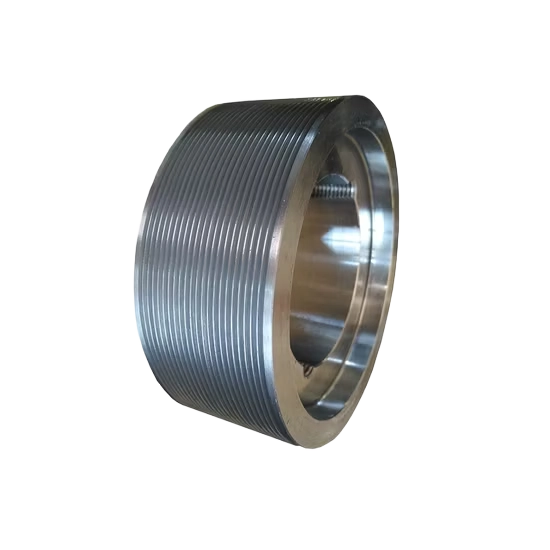

Poly-V-belt pulleys in PL profile are the basic type of Poly-V- Pulleys. They are produced in standard series and dimensions of gray cast iron. Their design is based on ISO 9982 (DIN 7867) standards. The standard pulleys are mounted on shafts using the Taper Lock bushes.

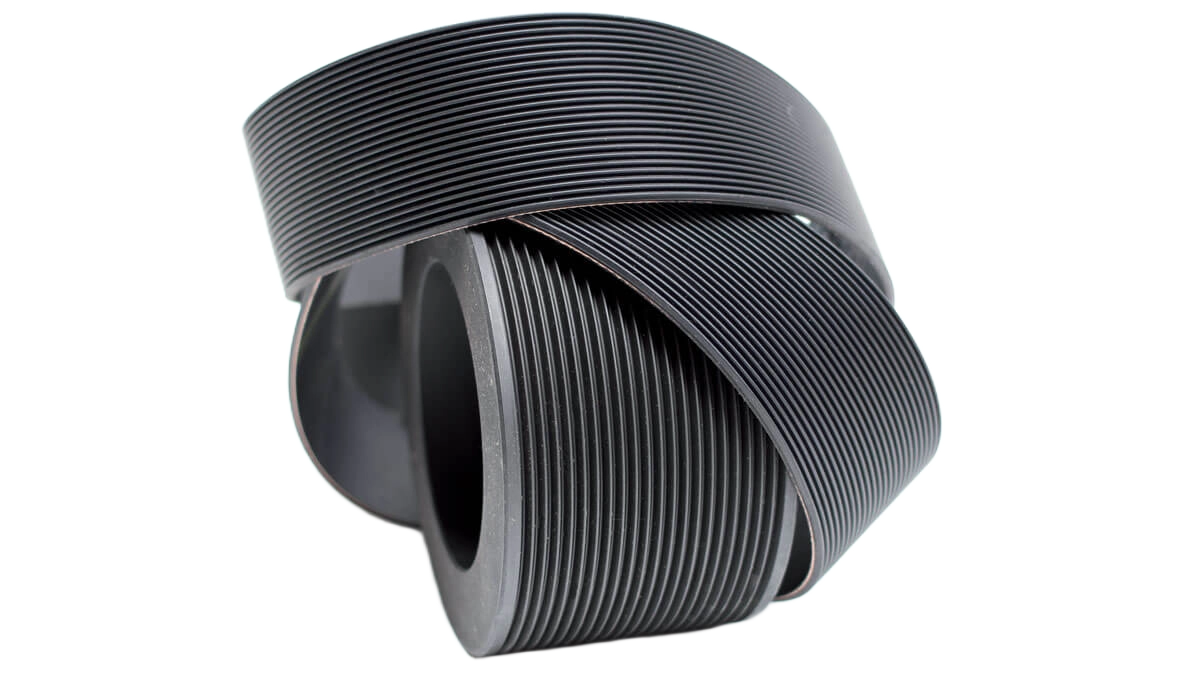

A Poly V belt, also known as a multi-ribbed belt, is a power transmission belt with multiple V-shaped ribs on its inner surface. These belts are designed to provide efficient power transfer between various components in machinery and automotive systems.
The poly-V-belt pulleys are designed for all types of poly-V-belts PJ, PK, PL and PM. They are typically used in compact compressor drives, blowers, machine tools, pumps, in the paper, chemical and automotive industry, garden technology and in many other machines.
Application
Poly V pulleys are versatile and used in various applications due to their efficiency and compact design. Here are some common applications:
1. Automotive Applications
Accessory Drives : Poly V pulleys are extensively used in vehicles to drive multiple accessories from a single belt. This includes components like the alternator, power steering pump, air conditioning compressor, and water pump.
Timing Systems : In some engine designs, poly V pulleys are used in timing systems for precise synchronization of engine components.
2. Industrial Machinery
Conveyor Systems : In conveyor systems, poly V pulleys help drive the belts that move materials through production lines.
Pumps : Many industrial pumps use poly V pulleys for efficient power transmission, reducing maintenance needs and increasing reliability.
Fans and Blowers : They are used in various types of fans and blowers where smooth and efficient power transfer is crucial.
3. HVAC Systems
Air Handlers : Poly V pulleys drive the fans and blowers in HVAC systems, contributing to efficient airflow and system operation.
Compressors : In HVAC units, they help drive compressors, ensuring consistent performance and reliability.
4. Agricultural Equipment
Tractors : Used in tractors for driving various implements and accessories, such as alternators, hydraulic pumps, and more.
Harvesters : They drive components like conveyors and threshers, helping to ensure efficient operation.
Advantages
Poly V pulleys offer several advantages over traditional V-belt and flat-belt systems. Here are some key benefits:
1. Efficient Power Transmission
High Efficiency : Poly V pulleys and belts provide smooth, efficient power transmission with minimal slippage. This is due to the multiple contact points between the belt ribs and the pulley grooves, which improve grip and reduce power loss.
Higher Load Capacity : They can handle higher loads and transmit more power compared to traditional belts due to the even distribution of forces across the multiple ribs.
2. Compact and Lightweight Design
Space Savings : The narrower design of poly V belts allows for a more compact pulley system, making them suitable for applications where space is limited.
Reduced Weight : The lightweight nature of poly V belts and pulleys contributes to overall system efficiency and reduces the load on the engine or motor.
3. Improved Durability and Longevity
Reduced Wear : The even distribution of forces across the ribs reduces wear on both the belt and the pulley, leading to longer service life.
Less Maintenance : Poly V systems generally require less maintenance compared to traditional V-belt systems, as they are less prone to issues like belt slippage and misalignment.
4. Smooth Operation and Reduced Noise
Quieter Performance : The design of poly V belts reduces noise and vibration, resulting in quieter operation compared to traditional V- belts.
Reduced Vibration : The smooth and even contact between the belt and the pulley reduces vibrations, which helps protect sensitive components and improves overall system stability.
5. Versatility and Flexibility
Adaptability : Poly V belts can operate over small pulleys and at various angles, offering flexibility in system design and integration.
Multiple Applications : They are used in a wide range of applications, from automotive and industrial machinery to household appliances and HVAC systems.
Specification
When specifying a Poly V (or serpentine) pulley, several key factors and dimensions need to be considered to ensure compatibility and optimal performance. Here's a guide to the common specifications and details you might need:
1. Belt Profile and Dimensions
Number of Ribs : Poly V belts come with varying numbers of ribs (typically 4, 6, 8, or more), which need to match the grooves on the pulley.
Belt Width : The width of the belt is important for proper fit and engagement with the pulley. Common widths include 10mm, 13mm, 16mm, etc.
Belt Pitch : The distance between the centers of adjacent ribs (pitch) is crucial for ensuring proper alignment and engagement. Standard pitches are often specified as mm (e.g., 2.34mm).
2. Pulley Dimensions
Outer Diameter (OD) : The diameter of the pulley where the belt rides. This affects the speed and torque of the driven components.
Inner Diameter (ID) : The diameter of the central hole for mounting the pulley on the shaft. It must match the shaft size or include appropriate bushings.
Groove Width and Depth : The width and depth of the grooves must match the belt profile to ensure proper fit and performance.
Number of Grooves : The number of grooves on the pulley should match the number of ribs on the belt.
3. Material and Finish
Material : Poly V pulleys are typically made from materials like aluminum, steel, or cast iron, depending on the application requirements.
Finish : Surface finish can impact performance and longevity. Options include anodized, painted, or plain metal finishes.
4. Mounting and Shaft Details
Mounting Type : Pulleys can be mounted in various ways, including through a central bore, keyways, or bolt patterns. Specify the mounting type based on the application.
Shaft Size and Type : The pulley must fit the shaft it will be mounted on, including considerations for shaft diameter, keyways, and other mounting features.
5. Load and Speed Ratings
Load Capacity : The pulley should be rated to handle the expected load, including any dynamic forces that may be encountered.
Speed Rating : Ensure that the pulley can operate at the required speeds without issues like excessive vibration or heat buildup.
Size / Type
Poly V pulleys, also known as serpentine pulleys or multi-ribbed pulleys, come in various types to suit different applications and requirements. Here are the main types:
1. Standard Poly V Pulleys
General Use : These are the most common type and are used in a wide range of applications, from automotive accessory drives to industrial machinery.
Features : Typically have a series of parallel grooves to match standard Poly V belts.
2. Multi-Groove Pulleys
Description : These pulleys have multiple grooves designed to accommodate belts with multiple ribs.
Applications : Often used in systems requiring high power transmission and where space constraints prevent the use of wider pulleys.
3. Taper Lock Pulleys
Description : Feature a tapered bore that allows for easy mounting and removal using a taper lock bushing.
Applications : Common in industrial settings where frequent changes to the pulley or belt setup are needed.
4. Adjustable Pulleys
Description : These pulleys allow for adjustment of the belt tension or position, which can be crucial for precise applications.
Applications : Used in systems where belt tension needs to be frequently adjusted or where alignment changes are necessary.
5. V-Belt Conversion Pulleys
Description : Designed to convert traditional V-belt systems to Poly V belt systems.
Applications : Useful in upgrading older machinery or engines to take advantage of the efficiency and space-saving benefits of Poly V belts.
6. Idler Pulleys
Description : These pulleys are used to guide and tension the belt within the system without transmitting power.
Applications : Common in automotive accessory drives and industrial systems to maintain proper belt alignment and tension.
7. Stepped Pulleys
Description : Have different diameter steps or sections that allow for varying belt sizes or speeds.
Applications : Useful in applications where variable speed or multi-speed operations are required.
8. Double-Sided Pulleys
Description : Feature grooves on both sides of the pulley, allowing for the use of belts on either side.
Applications : Often used in systems where multiple belts are required or where a single pulley needs to serve multiple functions.
9. Grooved Pulleys with Flanges
Description : Have flanges or side guides to keep the belt in place, especially in systems with high-speed or high-torque requirements.
Applications : Common in high-performance automotive engines and industrial machinery to prevent belt slippage.
10. Custom or Specialty Pulleys
Description : Designed for specific applications or unique requirements not met by standard pulleys.
Applications : Tailored for custom machinery, special industrial applications, or unique engineering requirements.
When selecting a Poly V pulley, consider factors like load capacity, speed requirements, space constraints, and the specific needs of your application to choose the most suitable type.
