About

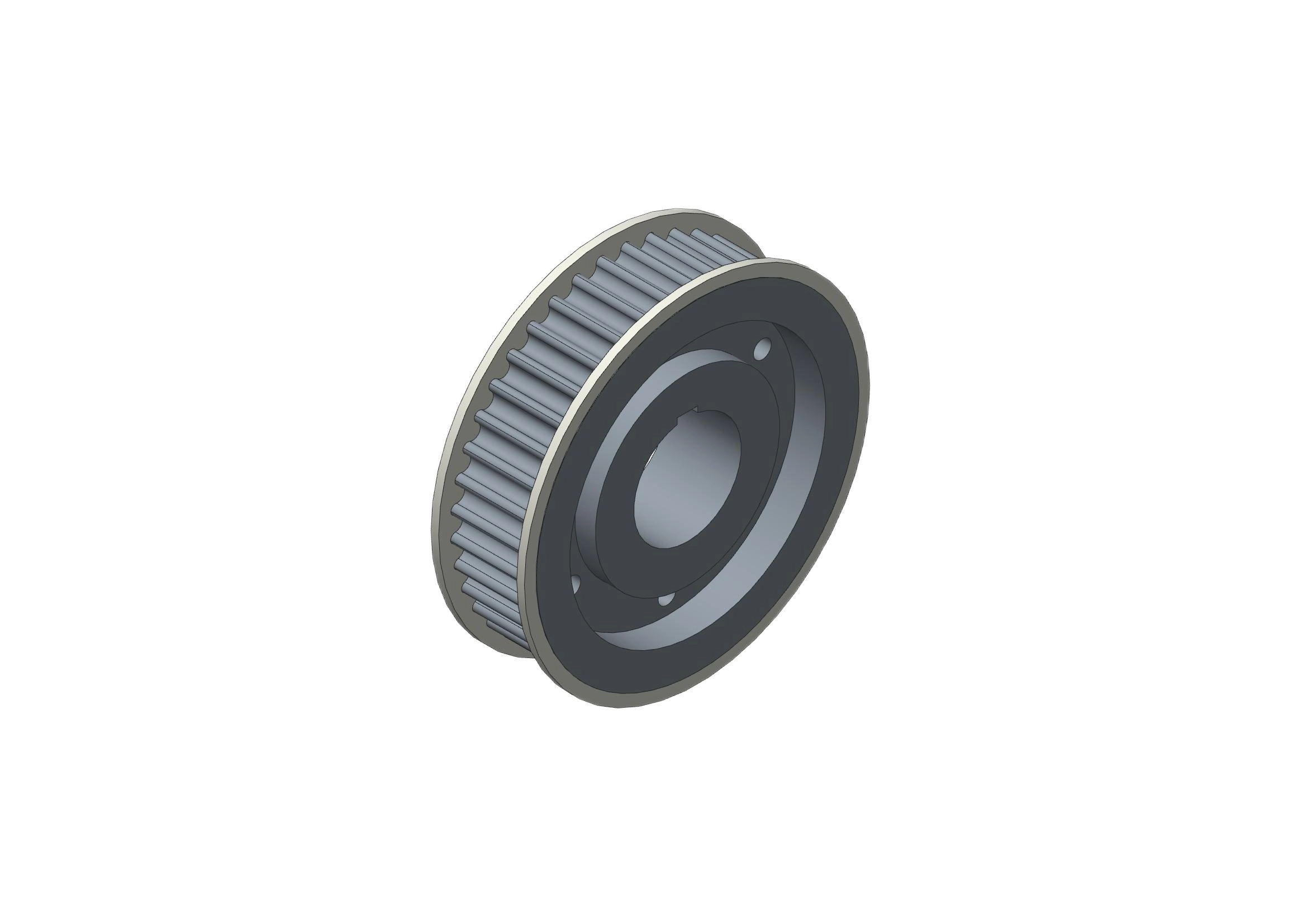

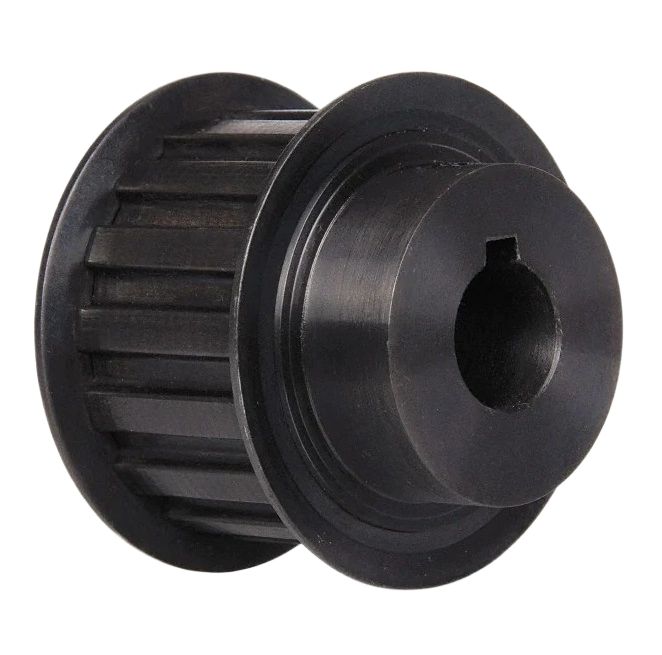

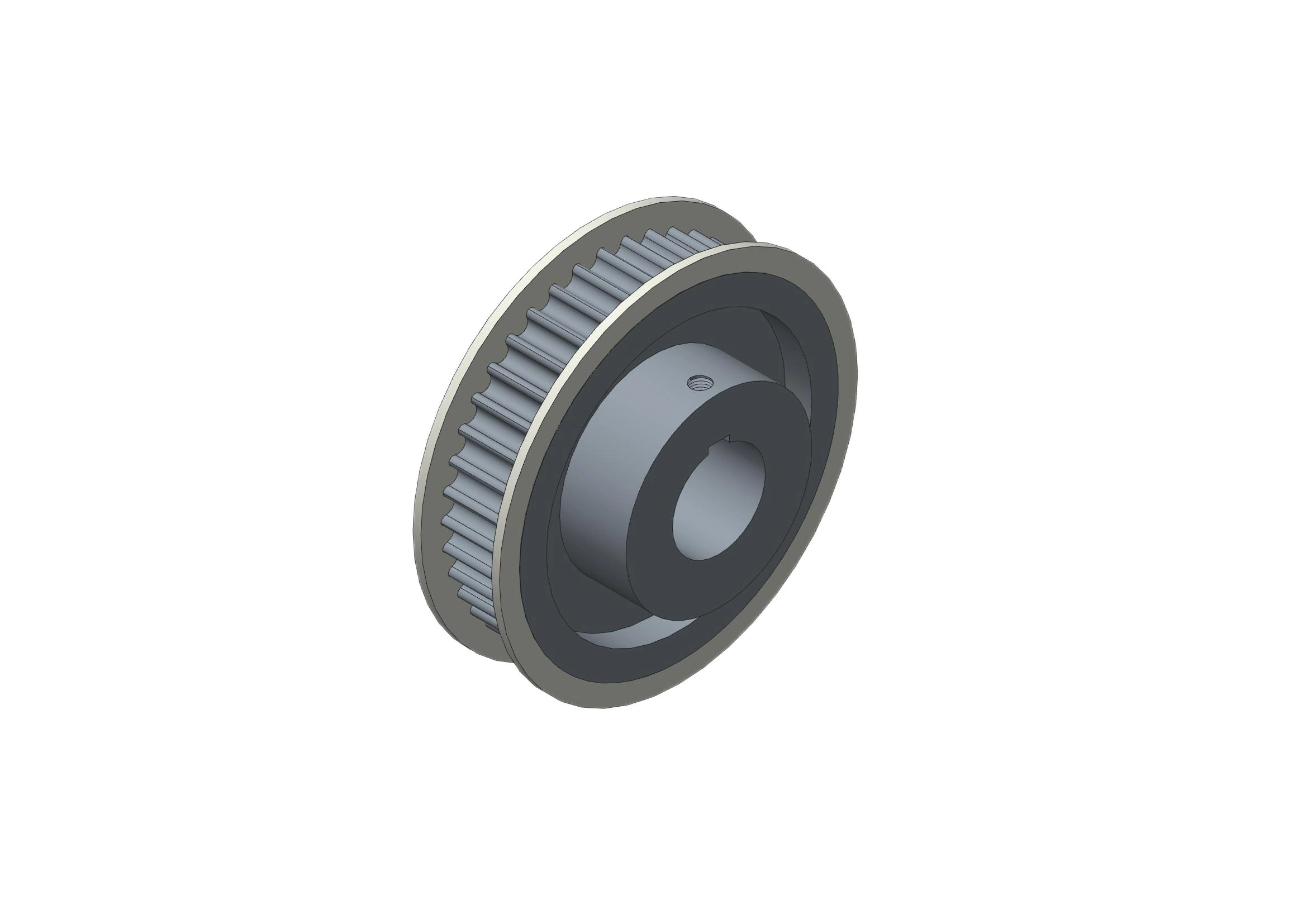

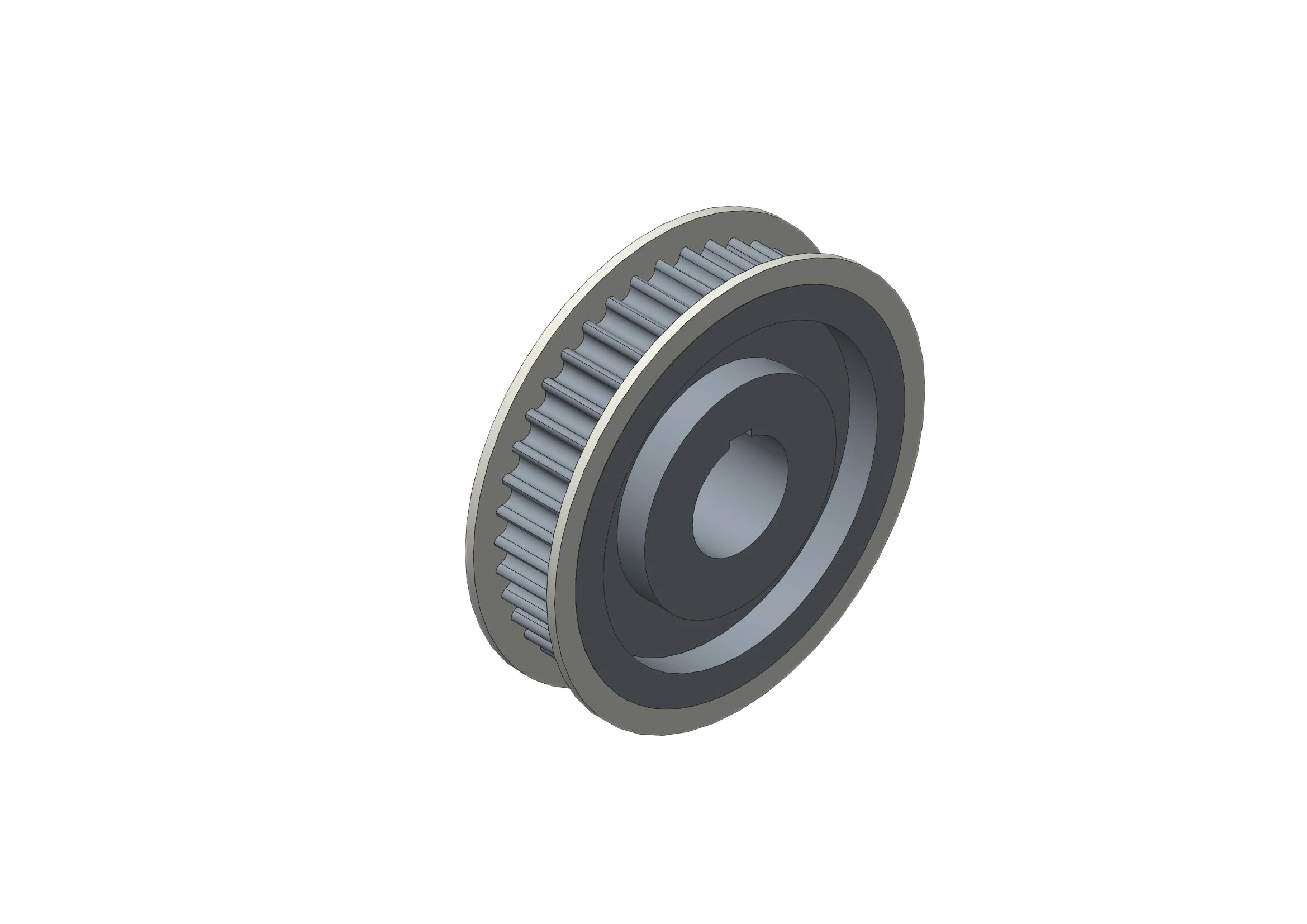

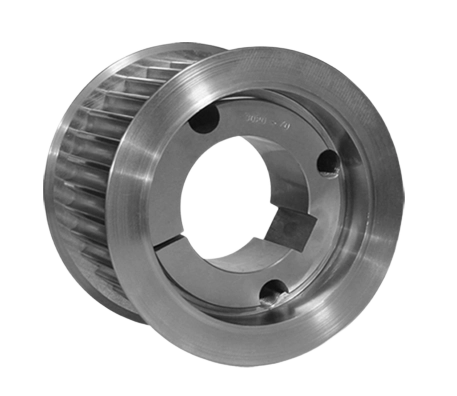

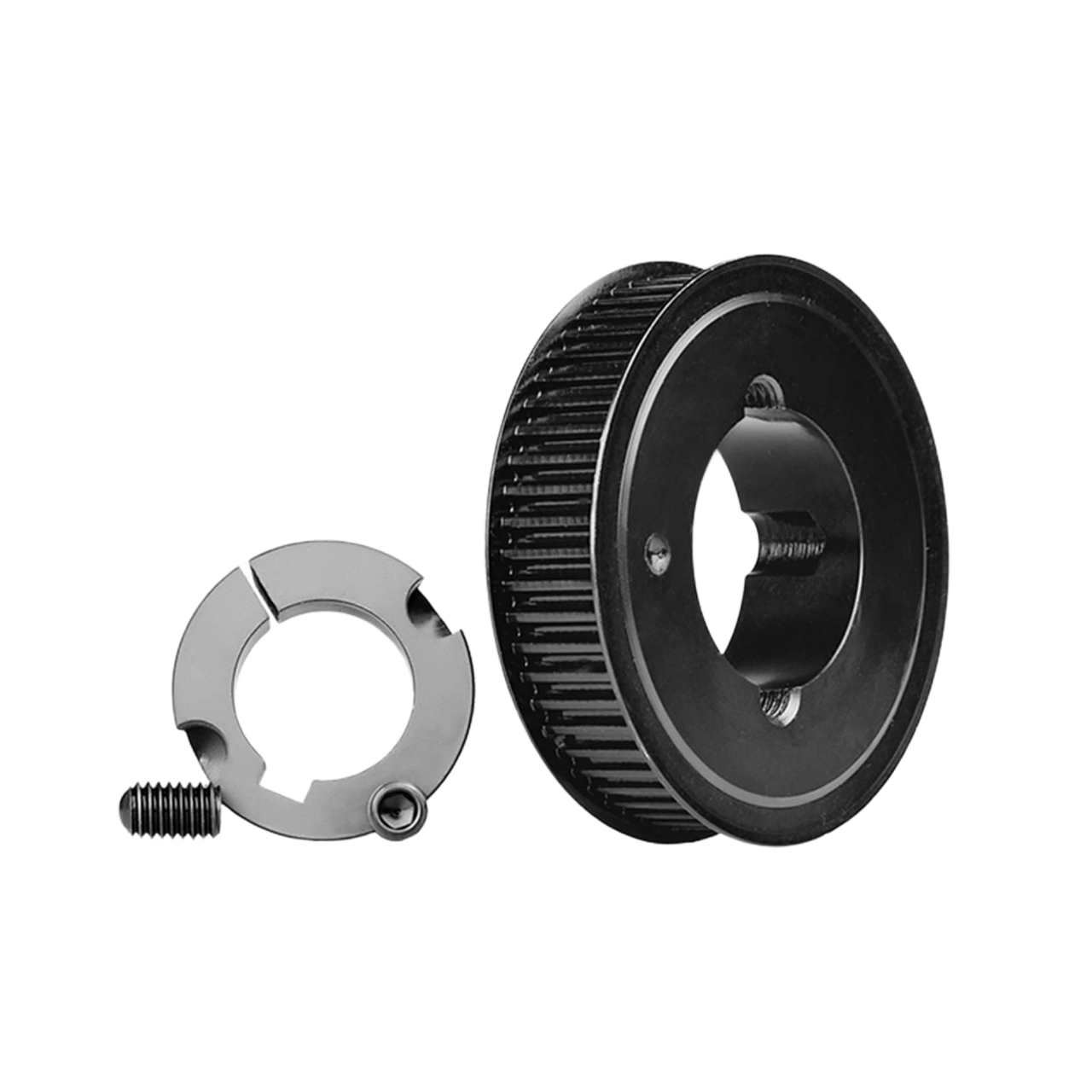

A timing pulley is a type of pulley that is specially designed with teeth around its circumference. These teeth mesh with the teeth of a timing belt, also known as a synchronous belt. The primary purpose of a timing pulley and belt system is to transfer rotational motion and power efficiently between shafts, ensuring precise timing and synchronization between components.
Here are some key features and uses of timing pulleys:
- Teeth and Belt Compatibility : Timing pulleys have teeth that match the pitch (spacing) and profile of the timing belt they are intended to work with. This ensures a positive engagement between the pulley and the belt, preventing slippage.
- Precise Motion Control : They are used in applications where accurate timing and synchronization of shaft rotation are critical. This includes various industries such as automotive, robotics, printing, and manufacturing equipment.
- Material and Construction : Timing pulleys are typically made from materials such as aluminum, steel, or plastics like nylon. The choice of material depends on factors such as load requirements, operating environment, and cost considerations.

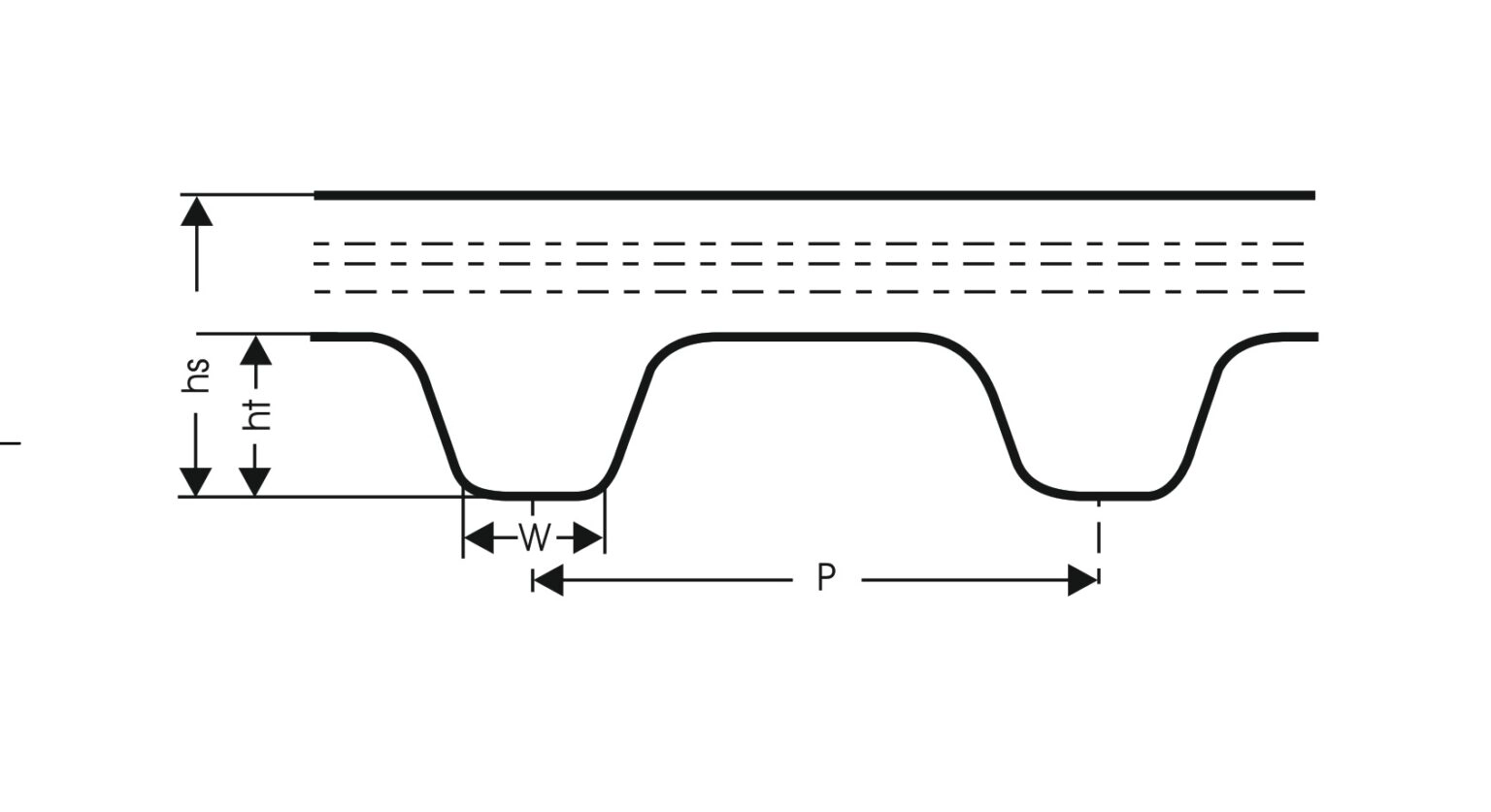

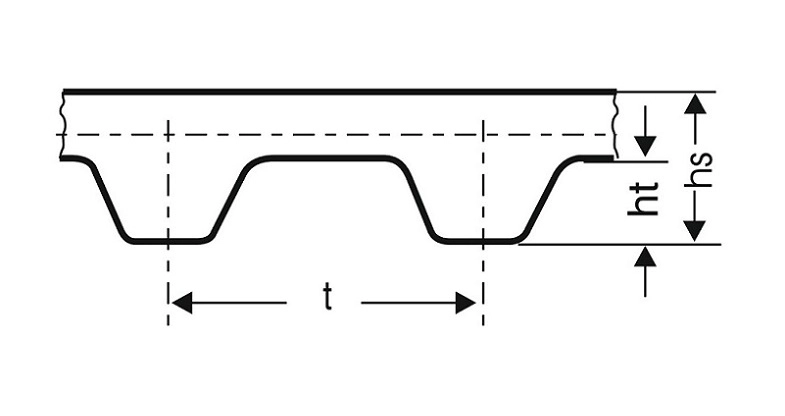

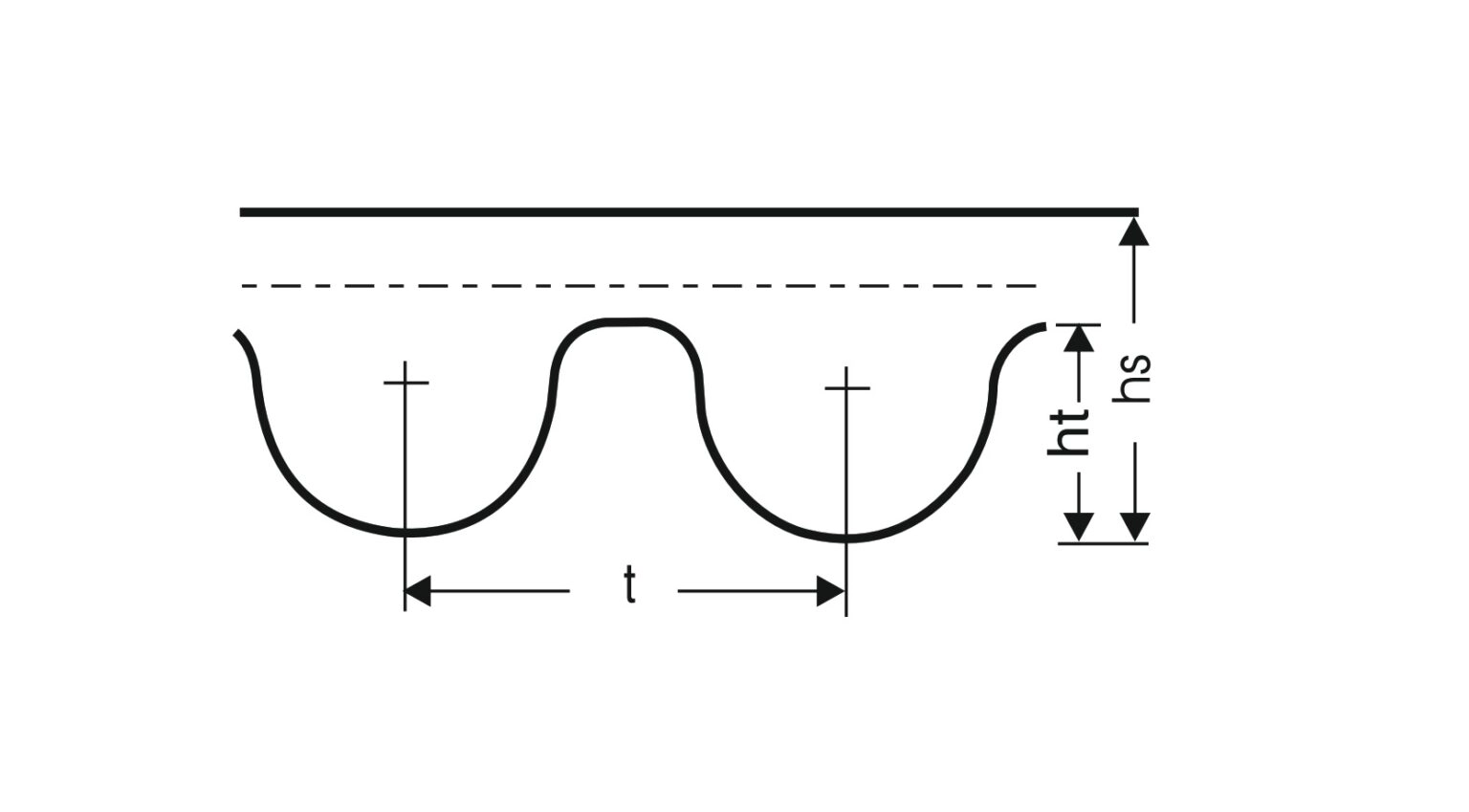

- Types of Teeth : Timing pulleys can have different tooth profiles, such as trapezoidal (for classical timing belts) or curvilinear (for timing belts with a curvilinear tooth profile). The type of tooth profile chosen depends on the specific requirements of the application.
- Sizes and Configurations : They come in various sizes (diameters and widths) and configurations (such as single- groove, double-groove, or multi-groove) to accommodate different power transmission needs and space constraints.
- Overall, timing pulleys play a crucial role in mechanical systems where precise timing, reliability, and efficiency are essential. They are integral components in ensuring smooth and synchronized operation of machinery and equipment.
Application
Timing pulleys find application in various industries and mechanical systems where precise timing, synchronization, and efficient power transmission are required. Some common applications include:
1. Automotive Engines : Timing pulleys and belts are used in internal combustion engines to synchronize the rotation of the crankshaft and camshaft(s). This ensures proper timing of the engine's intake and exhaust valves.
2. Industrial Machinery : They are extensively used in industrial machinery such as conveyor systems, packaging equipment, and printing presses. These applications require precise timing and synchronization to ensure consistent operation and product quality.
3. Robotics : Timing pulleys and belts are used in robotic systems for precise movement and control of robotic arms and other mechanical components. They help in achieving accurate positioning and motion control.
4. Textile Machinery : In textile manufacturing equipment, timing pulleys are used to control the movement of yarn feeders, rollers, and other components with precise timing to maintain proper tension and synchronization.
5. Medical Equipment : Timing pulleys play a critical role in medical devices and diagnostic equipment where precise movement and synchronization are necessary for accurate testing, imaging, and treatment processes.
6. Food Processing Equipment : They are used in food processing machinery for tasks such as conveying, sorting, and packaging, where hygiene, reliability, and precision are essential.
7. 3D Printers : Timing pulleys and belts are used in 3D printing machines to move the print head and control the positioning of the print bed with high precision.
8. Paper Handling and Printing : In office printers and large-scale printing presses, timing pulleys ensure precise movement of paper feed mechanisms and print heads for accurate printing.
Overall, the versatility of timing pulleys makes them integral components in various mechanical systems across industries, contributing to efficient operation, reliability, and precise control of machinery and equipment.
