About
Supreme Engineer is a well-established Rack and Pinion Suppliers in Ahmedabad. The offered rack and Pinion is a pair of gears that convert rotational motion into linear motion. We offer a wide range of gears conforming to the international quality norms. Our team of skilled professionals helps us in offering the best quality range of racks and pinion gears in Ahmedabad as per the needs of esteemed clients.
A Rack & Pinion gear mechanism is an effective way to transform rotatory motion into linear motion. The most common use of this gear system is in automotive steering systems. If you are searching for the ideal Rack and Pinion Suppliers and Exporters in India, then Supreme Engineer is the right choice for you.

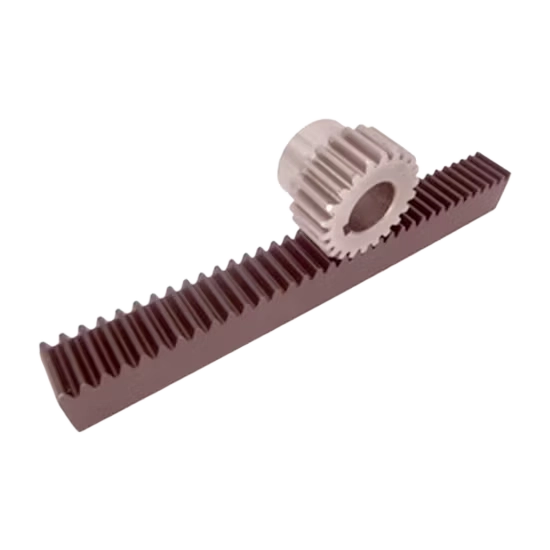

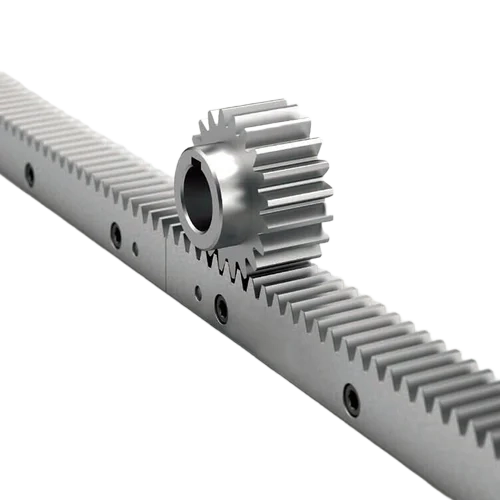

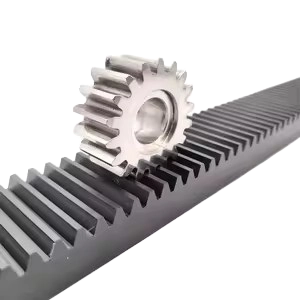

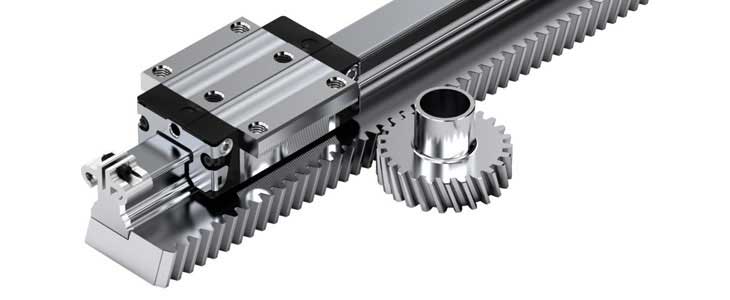

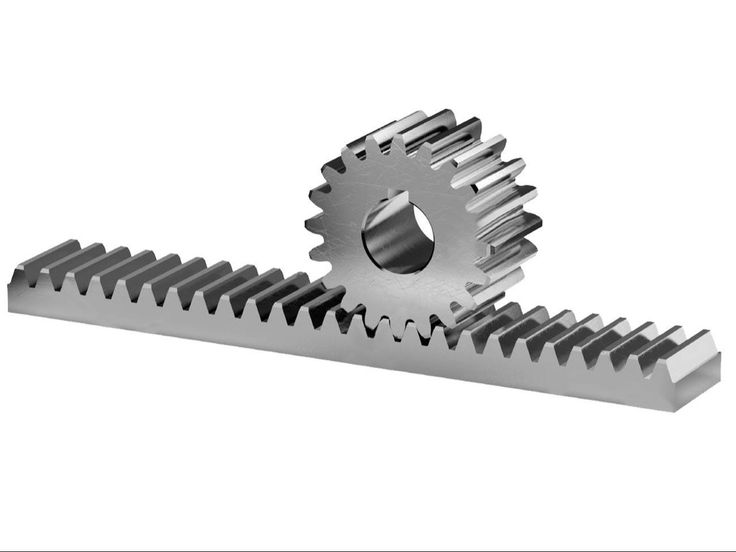

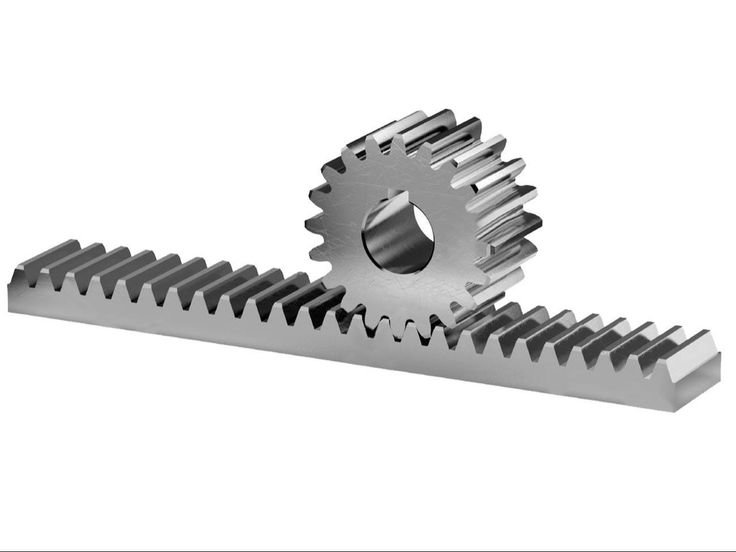

A rack and pinion is a type of linear actuator that comprises a circular gear (the pinion) engaging a linear gear (the rack). Together, they convert between rotational motion and linear motion: rotating the pinion causes the rack to be driven in a line.
A perfect example of rack gears and pinion gear systems is the steering system on many cars. The driver turns the steering wheel which rotates the gear, which then engages the rack, so as the gear turns it slides the rack to the right or the left depending on which way the steering wheel is turned.
Application
Rack and pinion systems are versatile mechanical components used in various applications to convert rotational motion into linear motion or vice versa. Here are some common and notable applications:
1. Automobiles:
Steering Systems : Rack and pinion are extensively used in automotive steering systems. The rotational movement of the steering wheel (pinion) is converted into the linear motion that turns the wheels (rack).
2. Industrial Machinery:
Machine Tools : Rack and pinion mechanisms are used in milling machines, lathes, and other CNC machines for precise linear movement and positioning of the workpiece or tool.
Conveyor Systems : They help in the linear movement of conveyor belts or material handling systems.
3. Robotics:
Actuators : In robotics, rack and pinion systems are used to achieve linear motion for robot arms, legs, or other moving parts, allowing for precise and controlled movements.
4. Aerospace:
Landing Gear : Rack and pinion systems can be used in the landing gear mechanisms of aircraft to convert rotational motion into the linear motion needed to extend and retract the landing gear.
5. Automation and Linear Actuation:
Automated Doors and Gates : Rack and pinion systems are used in automated sliding doors or gates for smooth and controlled movement.
Adjustable Workstations : They provide a means to adjust the height or position of workstations or equipment in automated settings.
6. Agricultural Equipment:
Tractors and Harvesters : Used in various parts of agricultural machinery to control adjustments and movements, such as steering and implements.
Advantages
Rack and pinion systems offer several advantages, making them a popular choice for various mechanical applications. Here are some key benefits:
1.Simplicity:
Design : The rack and pinion mechanism has a straightforward design, which makes it easier to understand, manufacture, and maintain compared to more complex systems.
2.Precision:
Accuracy : Provides precise and predictable linear motion as the pinion rotates, ensuring that the movement of the rack is accurate and consistent.
3.Reliability:
Durability : Typically robust and durable, with fewer points of failure compared to more complex mechanisms. This contributes to a long service life when properly maintained.
4.Compactness:
Space Efficiency : Can achieve linear motion in a compact form factor, which is useful in applications where space is limited.
5.Cost-Effectiveness:
Economical : Generally more cost-effective to produce and implement than some alternative linear motion systems, especially for standard applications.
6.Load Handling:
Capacity : Capable of handling significant loads and forces, making it suitable for applications requiring substantial mechanical power.
7.Smooth Operation:
Motion Quality : Provides smooth and continuous linear movement with minimal vibrations or jerks, which is important for both precision and user comfort.
Specification
A rack and pinion system is a type of mechanical arrangement used to convert rotational motion into linear motion. Here's a breakdown of the key specifications and considerations for designing or selecting a rack and pinion system:
1. Rack Specifications:

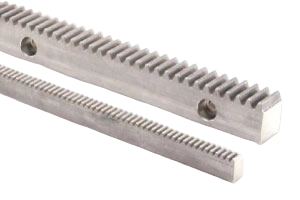

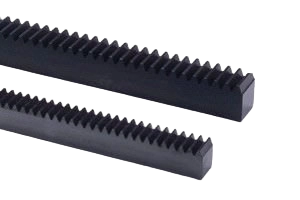

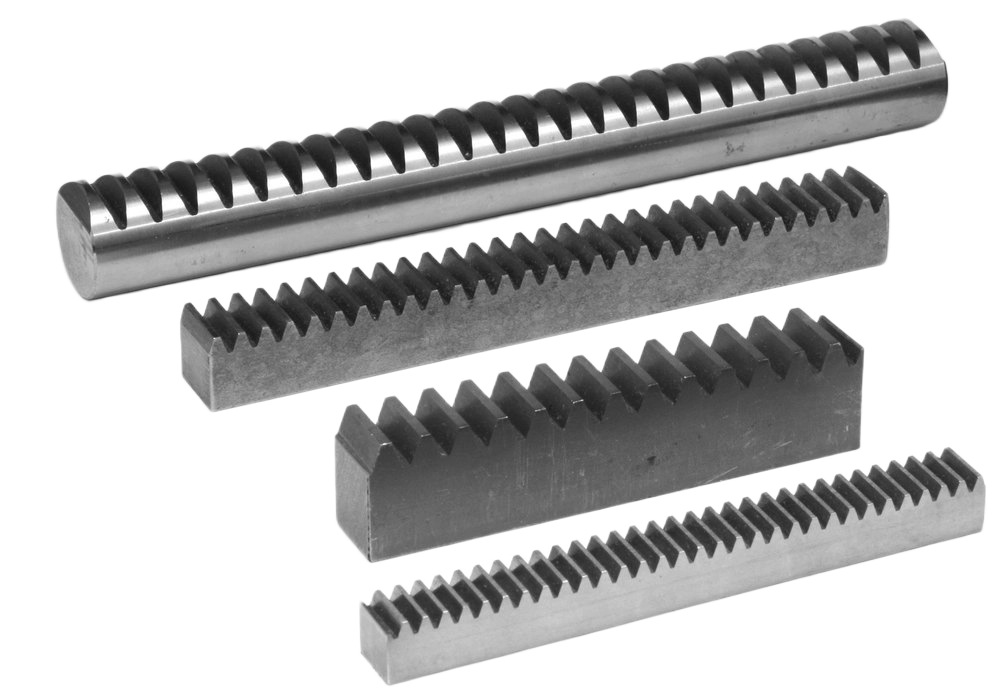

Length : The total length of the rack, which determines how far the linear motion can extend.
Pitch : The distance between corresponding points on adjacent teeth, which defines the spacing of the teeth. Common units are inches or millimeters.
Module : The module is a metric unit that represents the size of the teeth. It's calculated as the pitch divided by π.
Tooth Profile : Typically involute, but other profiles like cycloidal or rounded may be used. The involute profile is most common for its efficiency and smooth operation.
Width : The width of the rack affects its strength and load capacity.

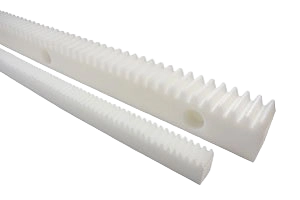

Material : Common materials include steel, aluminum, or plastic, depending on the application and required strength.
Accuracy and Tolerance : Tolerances are critical for ensuring proper meshing with the pinion and overall system performance.
2. Pinion Specifications:
Number of Teeth : Affects the gear ratio and the amount of linear movement per rotation.
Pitch Diameter : The diameter of the pitch circle, where the gear teeth effectively engage.
Module or Diametral Pitch : Similar to the rack, it defines the size of the teeth in either metric (module) or imperial (diametral pitch) units.
Pressure Angle : Typically 20° or 14.5°, this angle affects the force distribution and gear efficiency.
Tooth Profile : Generally involute, designed to mesh properly with the rack's teeth.
Material : Often made from materials like steel, cast iron, or hardened alloys for durability.
Face Width : The width of the pinion teeth, which should match or complement the rack width.
3. Gear Ratio:
Ratio Calculation : The gear ratio is determined by dividing the number of teeth on the pinion by the number of teeth on the rack. This ratio affects the speed and torque transmitted.
4. Load Capacity:
Static Load : Maximum load the system can support without movement.
Dynamic Load : Load during operation, which includes factors like speed and acceleration.
5. Environmental Factors:
Operating Conditions : Considerations such as temperature, humidity, and exposure to chemicals can affect material choice and lubrication needs.
Lubrication : Proper lubrication is essential to reduce friction and wear.
Size / Type
Rack and pinion systems come in various types, each designed to meet specific requirements in mechanical systems. Here's an overview of some common types:
1. Straight Cut Rack and Pinion
Description : The most common type, where the teeth are straight and parallel to the axis of rotation.
Advantages : Simple design, easy to manufacture, and cost-effective.
Applications : General-purpose applications, automotive steering systems, and industrial machinery.
2. Helical Rack and Pinion
Description : Features teeth that are cut at an angle to the axis of the pinion. This creates a helical pattern.
Advantages : Provides smoother and quieter operation compared to straight cut gears due to gradual engagement of teeth.
Applications : High-speed and high-load applications, such as in high-precision machinery and some automotive steering systems.
3. Spur Rack and Pinion
Description : Similar to straight cut but often referred to as spur when the pinion has straight, parallel teeth.
Advantages : Simple design and straightforward manufacturing.
Applications : Used in scenarios where noise and load requirements are not critical.
4. Bevel Rack and Pinion
Description : The pinion is a bevel gear, and the rack is straight. The teeth of the pinion are cut at an angle to the axis.
Advantages : Allows for changes in the direction of motion, often used where space constraints or directional changes are needed.
Applications : Gearboxes and devices requiring angular change in motion.
5. Worm Gear Rack and Pinion
Description : The pinion is a worm gear that meshes with a rack.
Advantages : Provides high torque output and significant reduction ratios.
Applications : Applications requiring high torque and reduction, such as in heavy machinery or precise adjustments.
