About Universal Joints
Supreme Engineers Universal Joints are engineered to
excel in a wide range of applications, providing flexible and reliable power transmission
solutions for diverse industries. Discover how our Universal Joints can elevate the
performance of your machinery.
Our heavy-duty universal joints (U-joints) deliver smooth torque transmission even in high-angle, high-speed applications. Engineered for minimal backlash and maximum service life, they're ideal for:
- ● Industrial machinery
- ● Automotive drive shafts
- ● Marine propulsion systems
- ● Agricultural equipment
What is a Universal Joint (U-Joint)?
A universal joint, also known as a U-joint, is a mechanical component used to connect two
shafts at an angle to transmit rotational motion. It allows for the transmission of torque
and rotational movement between shafts that are not in a straight line and may be offset or
angled relative to each other.
According to wikipedia, A universal joint (also called a universal coupling or U-joint) is a joint or coupling connecting rigid shafts whose axes are inclined to each other.

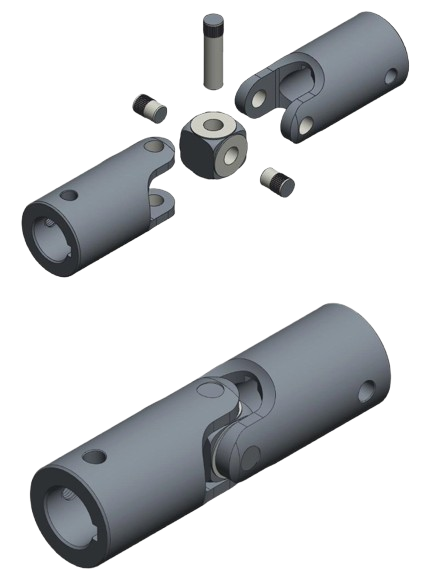

Structure and Function:

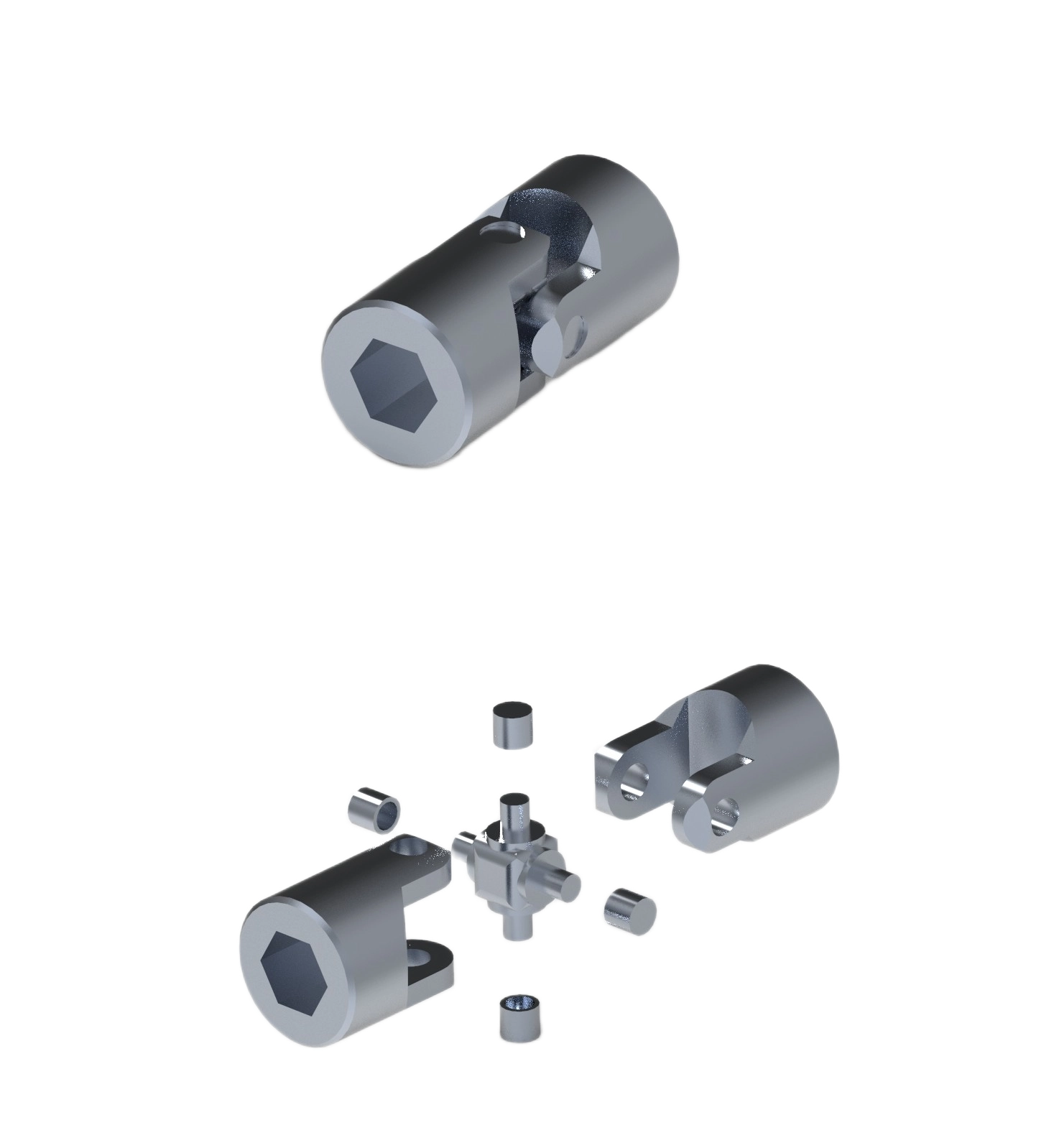

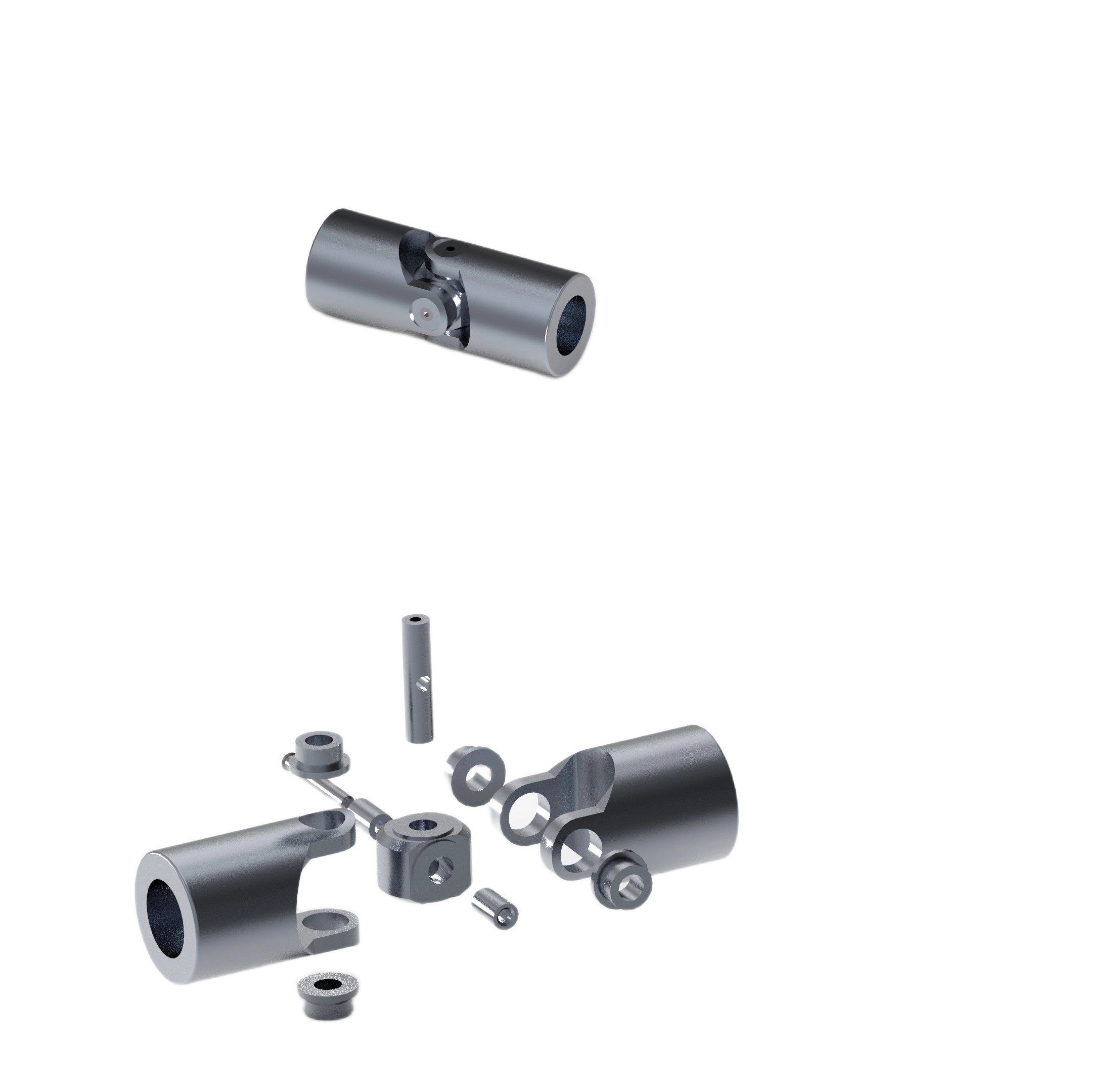

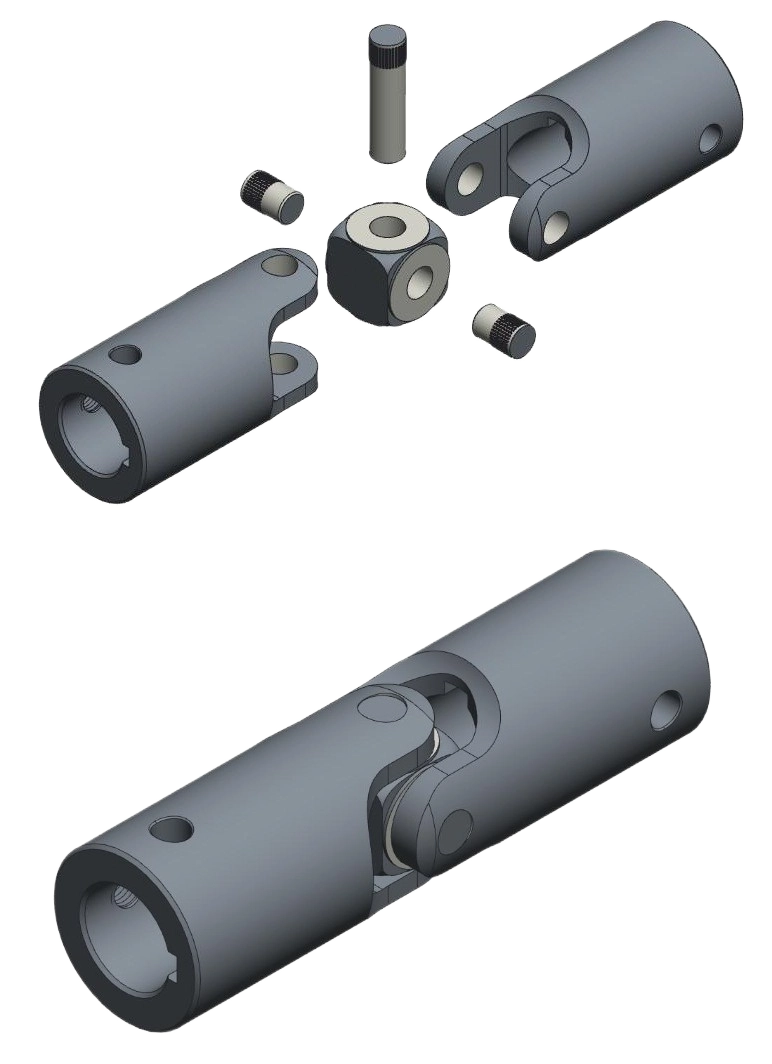

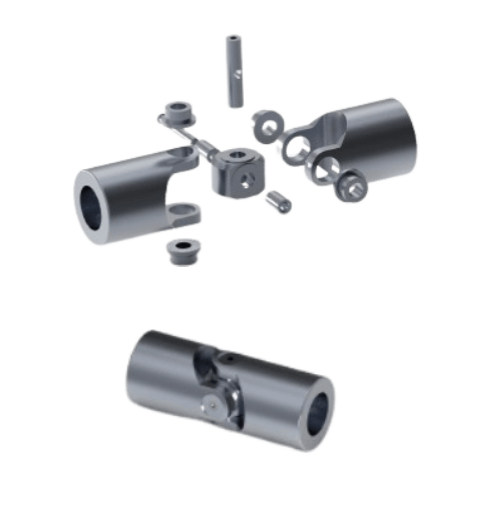

- Cross-Shaped Design: The basic design of a universal joint consists of a cross-shaped yoke
with four arms. Each pair of arms is connected to the ends of two shafts that intersect at an
angle.
-
Bearings: At the ends of each arm of the yoke, there are needle bearings or bushings that
allow the joint to pivot smoothly and transmit torque.
-
Cross-Coupling: The center of the cross-shaped yoke contains a mechanism (often a spherical
bearing or trunnion) that allows the joint to accommodate angular misalignment between the
connected shafts.
Why Choose Supreme Engineers Universal Joints?
Precision Machined: Tolerances within ±0.01mm

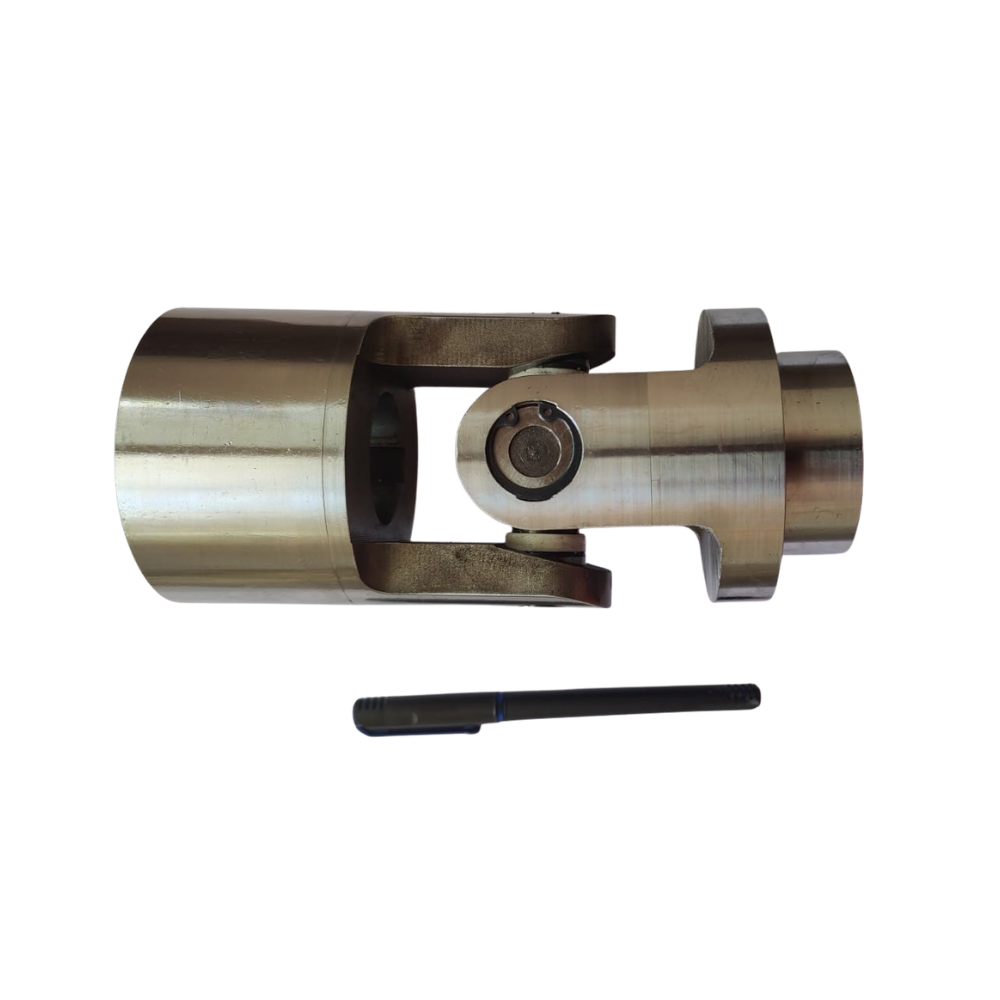

Multiple Material Options: Alloy steel, stainless steel, hardened cross bearings

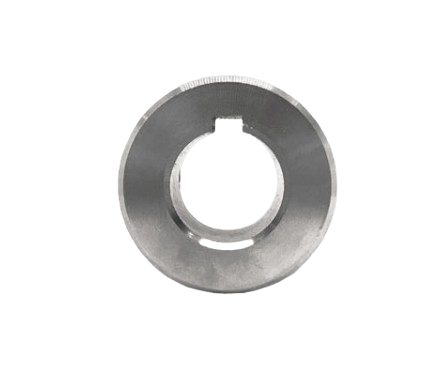

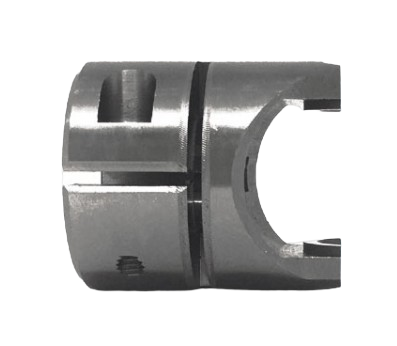

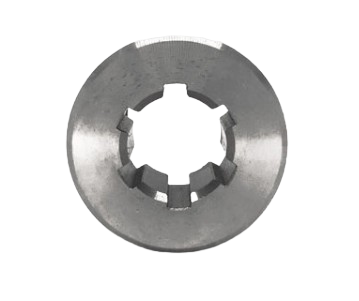

Custom Configurations: Bore sizes, yoke styles, and lubrication options
ISO 9001 Certified: Consistent quality assurance
Application of Universal Joints
Universal joints (U-joints) find diverse applications across various industries where they are crucial for transmitting rotational motion and torque between shafts that are not aligned in a straight line. Here are the key industries benefiting from our high-performance universal joints:
1. Automotive Industry
- Drive Shafts: Ensures efficient power transmission between engine and wheels.
- Steering Systems: Provide flexibility for smooth vehicle maneuverability.
- Propeller Shafts: Maintains seamless torque transfer in rear-wheel and all-wheel-drive systems.
2. Industrial Machinery
- Pumps and Compressors: Enable rotational motion in high-pressure systems.

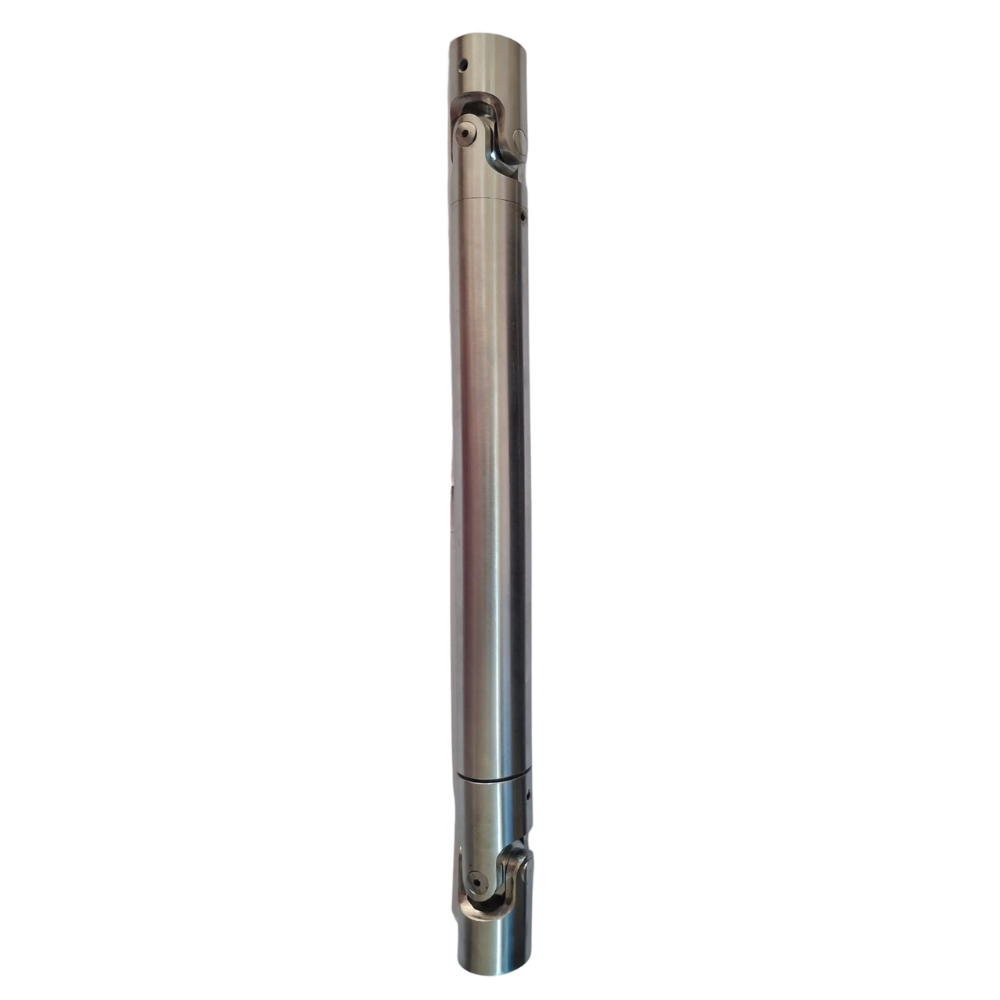

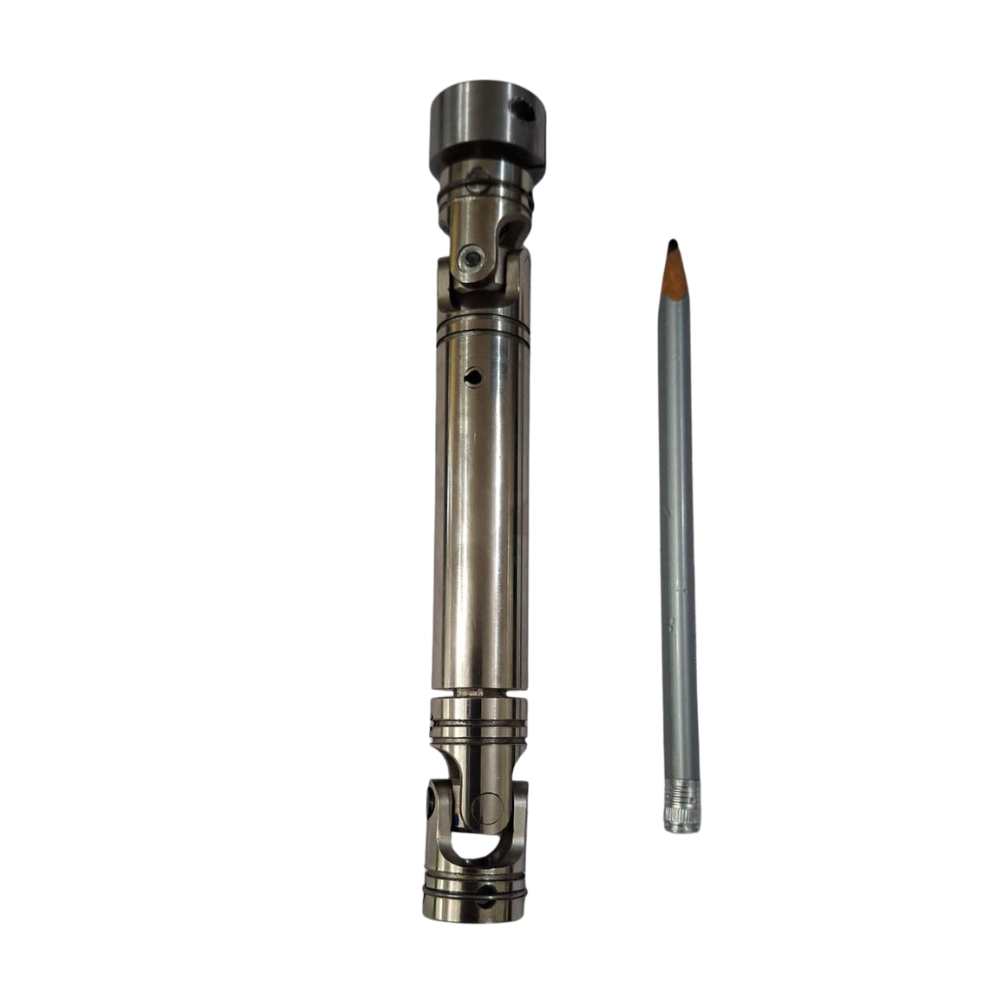

- Printing and Textile Machinery: Ensures precise motion control in automated production lines.
3. Aerospace and Defense
- Aircraft Control Systems: Facilitates movement in flight control surfaces.
- Military Vehicles: Enhances operational efficiency in rugged defense applications.
4. Marine Applications
- Boat Propulsion Systems: Ensures smooth rotation for marine drivetrain.
5. Heavy Equipment & Construction
- Excavators & Loaders: Transmits power efficiently for digging and lifting operations.
- Crane Systems: Provides stable and flexible motion for heavy load lifting.
6. Railroad and Transportation
- Railroad Locomotives: Enables power transmission in railway drivetrain.
- Mass Transit Vehicles: Supports movement in articulated and flexible transportation systems.
Looking for the best Universal Joints? Contact us today by Supreme Engineers
Advantages of Universal Joints
The universal joint, or U-joint, offers a pivotal solution for transmitting torque efficiently between non-aligned shafts, allowing for flexible and efficient power transfer in various mechanical systems. Automotive Drivetrains, Aerospace Applications, Marine Propulsion Systems, Heavy Equipment, Paper Industries, Textile Industries, Mining Industries, Material Handling Systems.
Universal joints are made from Steel, Alloy Steel, Stainless Steel, Aluminum, Bronze, Polyurethane, Rubber, Cast Iron, etc.
Universal joints (U-joints) offer several advantages in mechanical systems where they are utilized.
Here are some Key Advantages of Universal Joints
Flexibility in Shaft Alignment
Efficient Power Transmissio
Compact & Space-Saving Design
Cost-Effective & Reliable Solution
Shock Load Damping
Wide Industrial Applications
Easy Maintenance & Replacement
Variable Operating Angles
High Torque Handling Capacity
Extreme Temperature & Environmental Resistance
Key Features:
- ✔ Robust Construction – Forged alloy steel or stainless steel for high-torque applications.
- ✔ Needle Roller Bearings – Greaseable design extends service life by 3x vs. bushings
- ✔ 45° Operating Angle – Maintains efficiency in misaligned systems
- ✔ Custom Configs – Flanges, keyways, and hybrid metric/imperial designs
Best For:
- ● Driveshafts in trucks/agricultural equipment
- ● Industrial pumps & compressors
- ● Marine propulsion systems
FAQ : Universal Joints
To help you understand our high-performance universal joints, here are answers to some of the most commonly asked questions:
1. What is a Universal Joint (U-joint)?
A universal joint (U-joint) is a mechanical coupling that allows for the transmission of rotational motion and torque between shafts that are not in a straight line. It provides flexibility and smooth power transfer in various applications.
2. What Are the Main Applications of Universal Joints?
Our universal joints are widely used in multiple industries, including:
Automotive
Industrial Machinery
Aerospace & Defense
Marine
Construction & Heavy Equipment
Railroad & Transportation
3. What Are the Benefits of Using Supreme Engineers Universal Joints?
Flexible Shaft Alignment : Works with misaligned or offset shafts.
Smooth Power Transmission : Ensures consistent performance.
High Torque Capacity : Handles heavy loads efficiently.
Compact & Durable : Designed for long-lasting industrial use.
Wide Operating Angles : Supports variable motion needs.
4. What Materials Are Used in Your Universal Joints?
We manufacture universal joints using high-quality, durable materials, including:
Steel & Alloy Steel : High strength and wear resistance.
Stainless Steel : Corrosion-resistant and suitable for harsh environments.
Aluminum & Bronze : Lightweight options for specific applications.
Polyurethane & Rubber : Offers vibration damping and flexibility.
Cast Iron : Provides durability in heavy-duty applications.

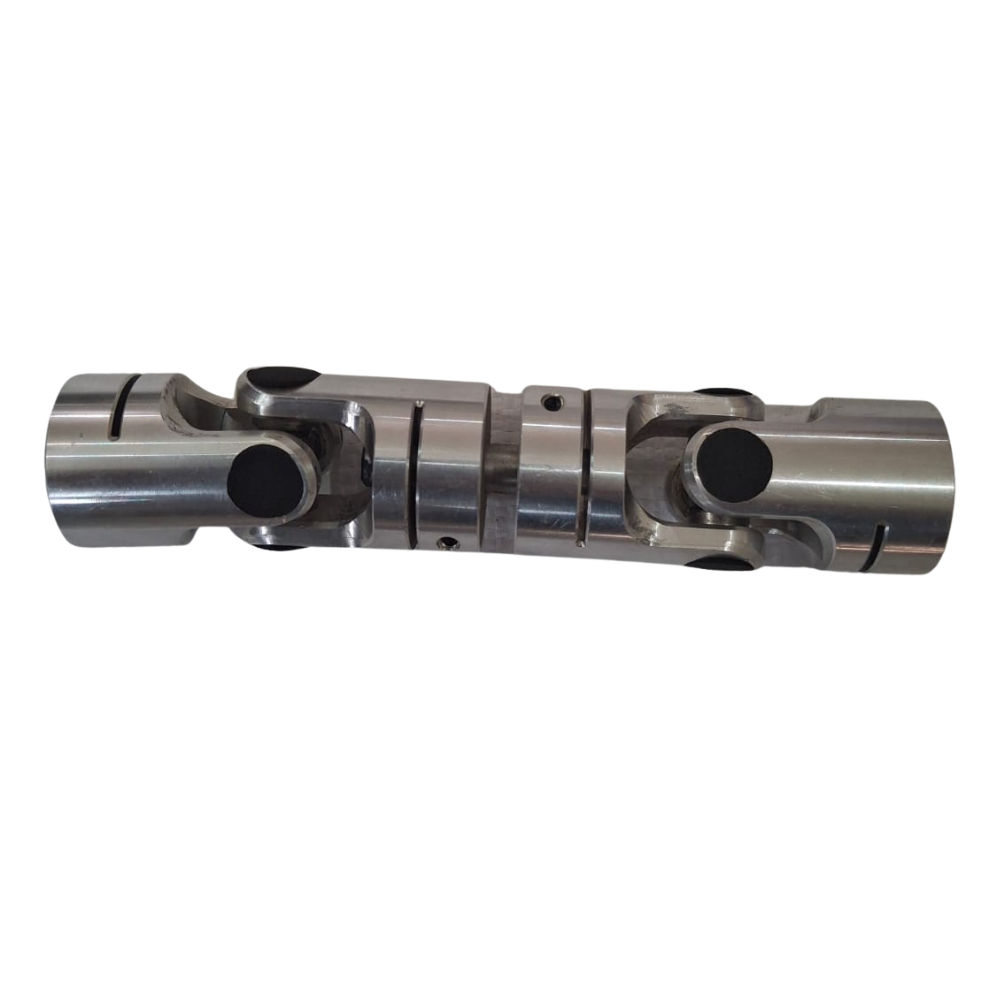

5. Do You Provide Custom Universal Joints?
Yes! We offer custom universal joint solutions tailored to your specific application. Contact us with your requirements, and our team will assist you in finding the perfect fit.
Visit our website to explore our range of universal joints and make a purchase.
6. How do I know when to replace a universal joint?
Look for vibration, clicking noises, or visible wear on cross bearings. Our joints include zerk fittings for easy maintenance.
7. Can you make u-joints with metric/imperial hybrids?
Yes! We specialize in custom hybrid universal joints for international equipment compatibility.
8. How often should I grease universal joints?
For needle-bearing U-joints:
- ● Normal use: Every 500 operating hours
- ● Harsh conditions (dust/water): Every 200 hours
9. What’s the max operating angle for a U-joint?
Standard joints work at ≤15°. For 15°–45° angles, use high-angle joints with special bearings.
10. Can I replace just the cross bearing?
Yes! We sell cross & bearing kits for common sizes (e.g., 1-inch bore, Series 5).
11. Why is my U-joint vibrating at high RPM?
Likely due to:
- ● Imbalance (Use dynamically balanced joints)
- ● Worn bearings (Inspect for pitting/spalling)
- ● Misaligned yokes (Laser-align shafts)
12. Do you make metric-to-imperial hybrid U-joints?
Yes! Example: 20mm bore (metric) with 3/4" keyway (imperial).
