About
Supreme Engineers Universal Joints are engineered to
excel in a wide range of applications, providing flexible and reliable power transmission
solutions for diverse industries. Discover how our Universal Joints can elevate the
performance of your machinery.
A universal joint, also known as a U-joint, is a mechanical component used to connect two
shafts at an angle to transmit rotational motion. It allows for the transmission of torque
and rotational movement between shafts that are not in a straight line and may be offset or
angled relative to each other.
Structure and Function:

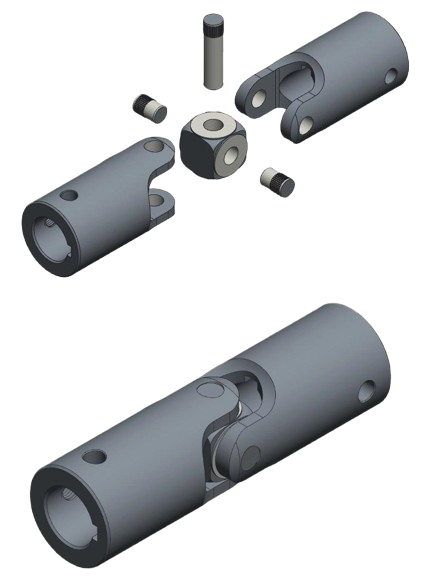

Cross-Shaped Design: The basic design of a universal joint consists of a cross-shaped yoke
with four arms. Each pair of arms is connected to the ends of two shafts that intersect at an
angle.

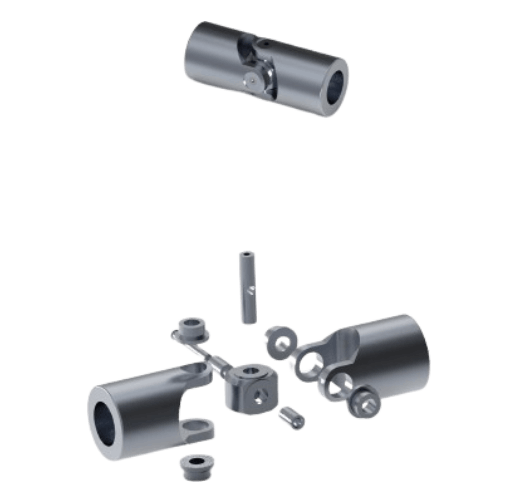

Bearings: At the ends of each arm of the yoke, there are needle bearings or bushings that
allow the joint to pivot smoothly and transmit torque.
Cross-Coupling: The center of the cross-shaped yoke contains a mechanism (often a spherical
bearing or trunnion) that allows the joint to accommodate angular misalignment between the
connected shafts.
Application
Universal joints (U-joints) find diverse applications
across various industries where they are crucial for transmitting
rotational motion and torque between shafts that are not aligned in a straight line. Here are
some common applications of universal joints:
1. Automotive Industry
- Drive Shafts
- Steering Systems
- Propeller Shafts
2. Industrial Machinery
- Pumps and Compressors
- Printing and Textile Machinery
3. Aerospace and Defense
- Aircraft Control Systems
- Military Vehicles
4. Marine Applications
- Boat Propulsion
5. Heavy Equipment and Construction
- Excavators and Loaders
- Crane Systems
6. Railroad and Transportation
- Railroad Locomotives
- Mass Transit Vehicles
Advantages
The universal joint, or U-joint, offers a pivotal
solution for transmitting torque between non-aligned shafts, allowing for flexible and
efficient power transfer in various mechanical systems.Automotives Drivetrains, Aerospace
Applications, Marine Propulsion Systems, Heavy Equipment, Paper Industries, Textile
Industreis, Mining Industries, Material Handling Systems, etc.A univesal joints made from
Steel, Alloy Steel, Stainless Steel, Aluminum, Bronze, Polyurethane, Rubber, Cast Iron, etc.
Universal joints (U-joints) offer several advantages in mechanical systems where they are
utilized.
Here are some key advantages:
- Flexibility in Shaft Alignment
- Smooth Power Transmission
- Compact Design
- Cost-Effective Solution
- Damping of Shock Loads
- Versatility in Application
- Maintenance and Replacement
- Variable Operating Angles
- High Torque Capacity
- Temperature and Environment Tolerance
